Front-end Django Data Model#

Key Data Entities#

The Django front-end consists of four key entities:

  • A User of the system
  • A Group (such as a research group) which contains many users
  • A CIF file (Crystallographic Information File), a standardised text file format for representing crystallographica information defined by the International Union of Crystallography
  • A Workflow Run, which is a logical grouping of previously run application steps and generated CIF files into a coherent view of them, with applications connected by CIF files as either input or output

Data Entity Relationships#

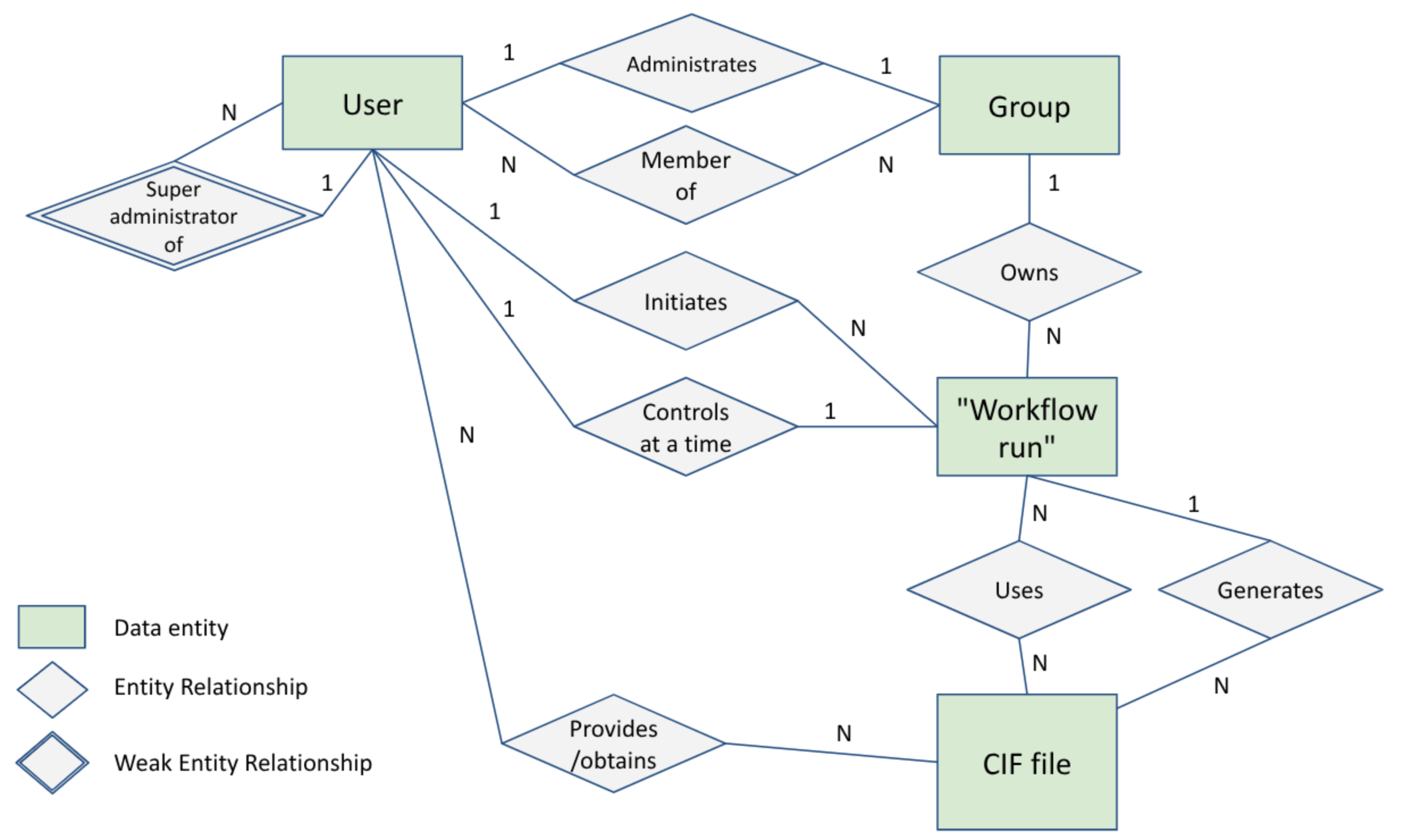

Django Data Entity Diagram

Key data relationships:

A User...

  • may be a Super Administrator, able to manage all aspects of users
  • may be a member of many Groups
  • may administrate a Group
  • may initiate many Workflow Runs
  • must control only one active Workflow Run at any time
  • may provide or obtain many CIF files from/to the system

A Group...

  • may have many Users as members
  • may own many Workflow Runs

A Workflow Run...

  • uses many CIF files
  • generates many CIF files
